Product Description

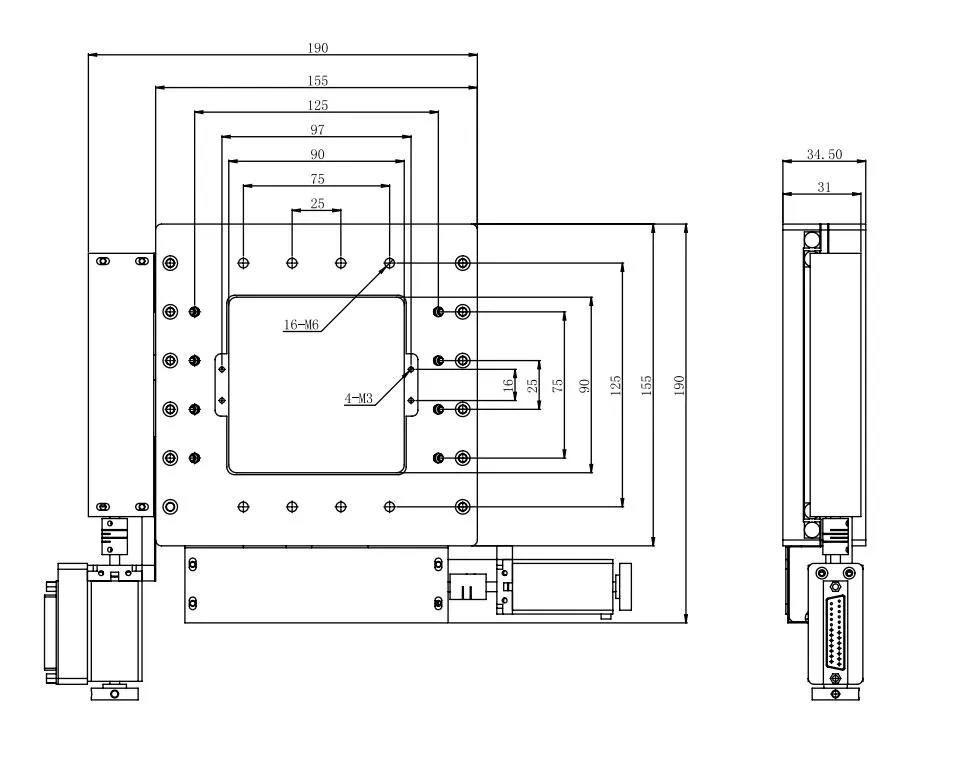

Features:1,The stage is equipped with standard stepping motor and standard RS232 interface. If combined with LSKZA series motion controller,it can be auto matically controlled.2,It is designed as double- axis unitary type and structured compactly. It reaches the high accuracy when the two- axis isvertical.3,High-quality and precise imported ball screw drive, high location accuracy and strong driving force.4,Guide rail takes crossed- roller combined with fine grinding V-shaped guide rail, easy movement, high precision and load capacity.5,Stepping motor and ball screw can reach the effects of transmission synchronization and low noise by connecting high-quality imported elastic joints.6,The stage is equipped with the limit and zero switch, convenient to locate exactly and protect products.7,The center is designed as square holes, which can let light pass and put card slide glass.8,The base is convenient to install and fix with standard pitch of screwed holes and through-holes.
